Triggering on Webhooks

In order to programatically trigger pipelines, you can send a POST call to Spinnaker at a preconfigured endpoint. This can be used to trigger pipelines when a CI job finishes, from the command line, or from a third-party system. The payload, whether it’s one you are able to write, or it’s provided to you, will be available in the Pipeline’s execution.

Note: It’s possible to configure multiple pipelines to trigger off of a single webhook.

If you’re triggering from a GitHub webhook, see the instructions here to set up that webhook.

If you’re triggering to a Spinnaker with authentication, see the instructions here to set up the automated trigger.

Adding a webhook trigger to a pipeline

Assuming you have created a pipeline, under Configuration, select Add Trigger and make its type selector Webhook.

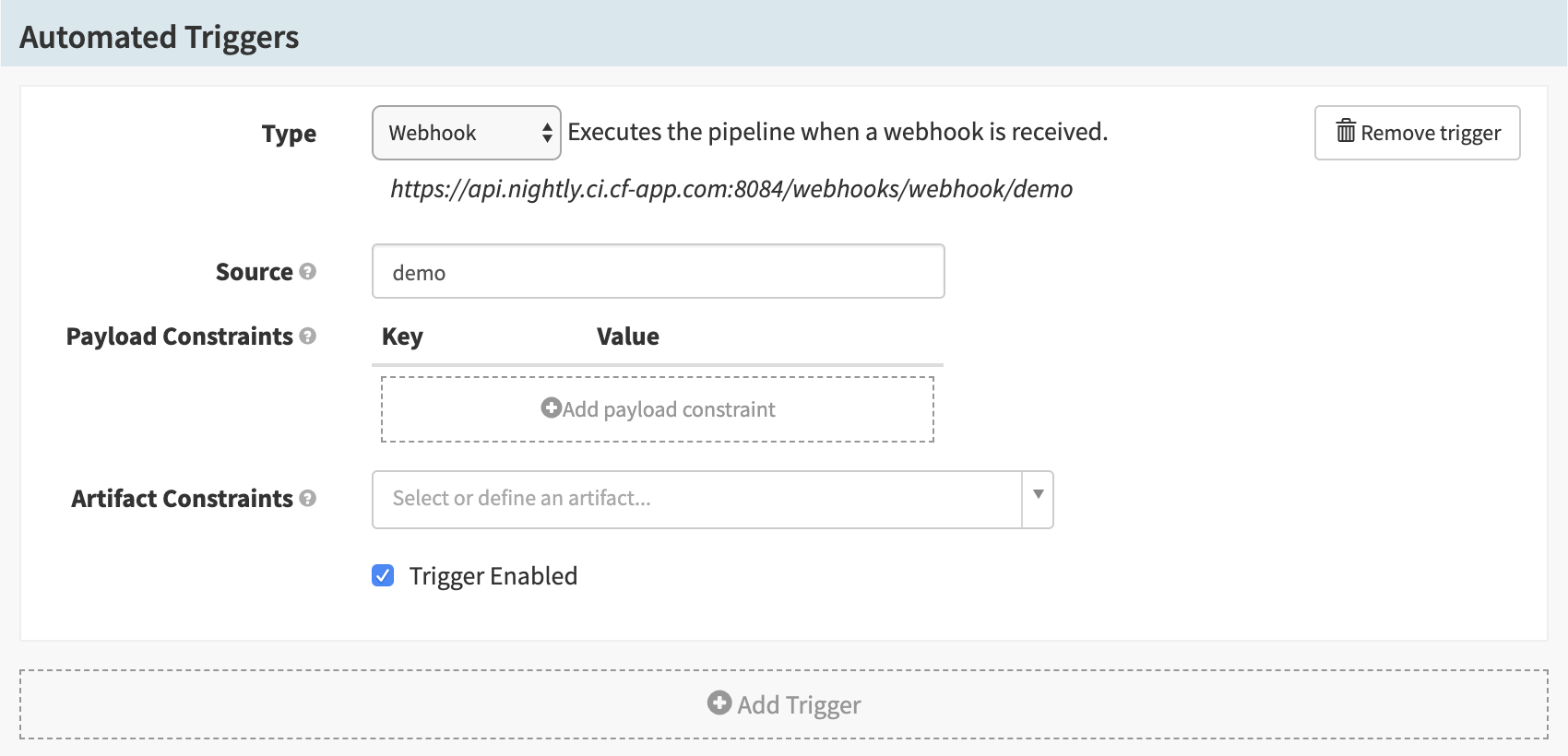

To assign an endpoint that must be hit, you can provide a value to the Source field as shown here:

Notice that in the above image below the Type dropdown, the webhook configuration points out that we can hit http://localhost:8084/webhooks/webhook/demo to trigger the pipeline. The endpoint depends on how you’ve configured your Spinnaker endpoints – if you’re running on a different endpoint, e.g., that’ll be shown instead.

Keeping track of that endpoint as $ENDPOINT (it will depend on where Spinnaker is installed), save that pipeline, and run:

curl $ENDPOINT -X POST -H "content-type: application/json" -d "{ }"

Payload constraints

If you want to ensure that a webhook only triggers when a certain payload arrives, you can provide Payload Constraints in the trigger. These are key/value pairs where the key must be found in the incoming payload, and the value must match using regex.

For example, if we configured:

For clarity, the constraints are foo = bar and bing = b.*p.

The following payload would be accepted:

  "foo": "bar",
  "bing": "boooop",
  "x": ["1", "2", "3"]

But this payload would be rejected (pipeline would not trigger):

  "foo": "bar",
  "x": ["1", "2", "3"]

Passing parameters

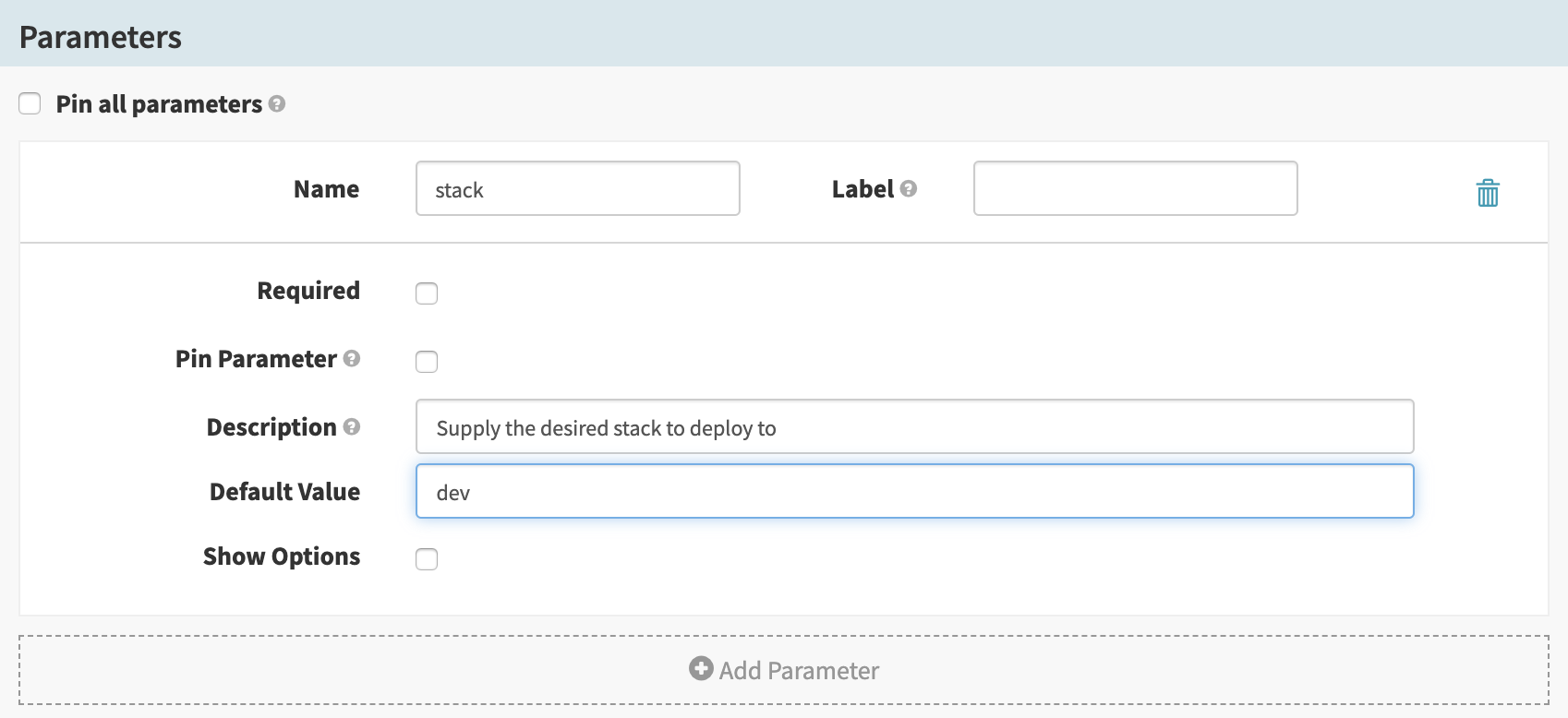

Say your pipeline accepted some parameters (e.g. the desired stack to deploy to), you can make this explicit by adding a pipeline parameter on the same configuration screen as the webhook trigger:

For more information on how to use pipeline parameters, see the pipeline expressions guide.

Warning: there are several reserved parameter keys (names) that cause unexpected behavior and failures if overwritten by a pipeline parameter definition. See the list of reserved parameter and evaluate variable key names.

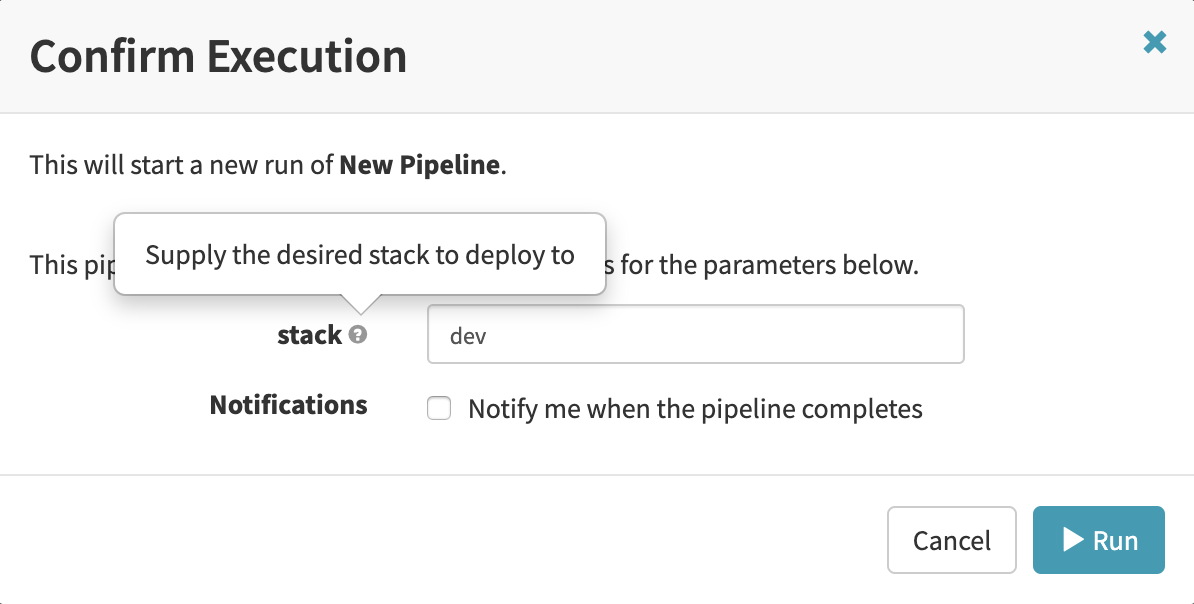

If you were to manually execute this pipeline, you would be prompted with the following dialogue:

If instead you were to trigger this pipeline with a Webhook, you could supply each parameter a value inside a key/value map called parameters. Take the following payload for example:

  "parameters": {
    "stack": "prod"

Note: If you selected the Required checkbox for a parameter without providing a default, the pipeline will not trigger if a parameter is not present. The difference between this and the preconditions covered earlier is that when a precondition isn’t met, Spinnaker will not even try to run the pipeline. However, when a required parameter doesn’t exist, Spinnaker will try and fail to run a pipeline, surfacing a “Failed Execution” in the UI.

Passing artifacts

If your pipeline requires artifacts (for example, a Kubernetes manifest file stored in GCS), you can make this explicit by defining an Expected Artifact and assigning it to the Webhook as shown below:

In order to run this pipeline, you will need to supply the required artifact in your payload under a list of artifacts:

  "artifacts": [
      "type": "gcs/object",
      "name": "manifest.yml",
      "reference": "gs://lw-artifacts/manifest.yml"
