GitHub Teams

GitHub App Authentication (Recommended)

GitHub App authentication, available in releases after 2025.4.0, is the preferred method for connecting Spinnaker to GitHub. It offers significant advantages over Personal Access Tokens (PATs):

• Higher Rate Limits: GitHub Apps have a rate limit of 15,000 requests per hour (vs 5,000 for PATs).
• Enhanced Security: Uses short-lived tokens that are automatically refreshed, rather than long-lived static tokens.
• Granular Permissions: Apps can be scoped to specific permissions.

Prerequisites

• You have GitHub organization admin permissions to create and install the app.
• If you use GitHub Enterprise, ensure the Halyard host trusts the enterprise TLS chain.

1. Create a GitHub App

1. Navigate to your GitHub Organization Settings > Developer settings > GitHub Apps.
2. Click New GitHub App.
3. Set the following fields:
   • GitHub App Name: e.g., spinnaker-fiat-auth.
   • Homepage URL: Your Spinnaker URL (or placeholder).
   • Callback URL: Your Spinnaker URL (or placeholder).
   • Webhook: Uncheck “Active” (not needed for authorization).
4. Permissions:
   • Organization Permissions > Members: Read-only
5. Click Create GitHub App.
6. Note the App ID.
7. Generate a Private key and save the .pem file to your Halyard machine (e.g., /home/spinnaker/.github/spinnaker-fiat.pem).
8. Install App: Go to “Install App” in the sidebar and install it on your organization. Note the Installation ID from the URL (e.g., https://github.com/organizations/my-org/settings/installations/12345678 -> 12345678).
   • Install at the organization level (not per-repo) so team membership lookups work for all repos.
   • Restrict the private key file to the Halyard user (for example, chmod 600 /home/spinnaker/.github/spinnaker-fiat.pem) to avoid permissive-permission failures and protect the key.

2. Configure with Halyard

Run the following commands to configure Fiat to use the GitHub App:

# Set your values
APP_ID=12345
INSTALL_ID=67890
PRIVATE_KEY_PATH=/home/spinnaker/.github/spinnaker-fiat.pem
ORG=my-org

hal config security authz github edit \
    --organization $ORG \
    --baseUrl https://api.github.com \  # For GitHub Enterprise, use https://<your-ghe>/api/v3
    --auth-method AUTO \
    --app-id $APP_ID \
    --installation-id $INSTALL_ID \
    --private-key-path $PRIVATE_KEY_PATH

hal config security authz edit --type github
hal config security authz enable

The --auth-method flag controls which authentication method Spinnaker uses:

• AUTO (Default): Automatically prefers GitHub App if app-id, installation-id, and private-key-path are configured. Falls back to PAT if App credentials are missing.
• GITHUB_APP: Forces GitHub App authentication. The configuration fails if App credentials are not provided or invalid.
• PAT: Forces Personal Access Token authentication. The configuration fails if access-token is not provided.

Token handling:

• GitHub App installation tokens are short-lived (1 hour) and Fiat caches them in memory with an early refresh buffer. They are never written to disk.
• The GitHub App private key stays on the Halyard host at the path you provide; keep it tightly permissioned.
• PATs configured with --accessToken are stored in Halyard/Fiat configuration; rotate them periodically and handle them like any other long-lived secret.

Personal Access Token (Legacy)

If you cannot use a GitHub App, you can still use a Personal Access Token (PAT). Note that this has lower rate limits.

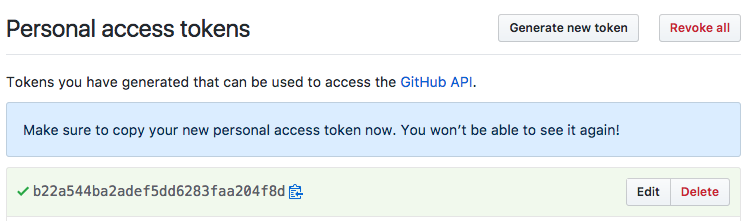

1. Under an administrator’s account, generate a new Personal Access Token from https://github.com/settings/tokens .

2. Give it a descriptive name such as “spinnaker-fiat.”

3. Select the read:org scope.

4. Click “Generate Token”



Configure with Halyard

With the personal access token in hand, use Halyard to configure Fiat:

TOKEN=b22a54...  # Personal access token under admin account
ORG=myorg        # GitHub Organization

hal config security authz github edit \
    --accessToken $TOKEN \
    --organization $ORG \
    --baseUrl https://api.github.com

hal config security authz edit --type github

hal config security authz enable
